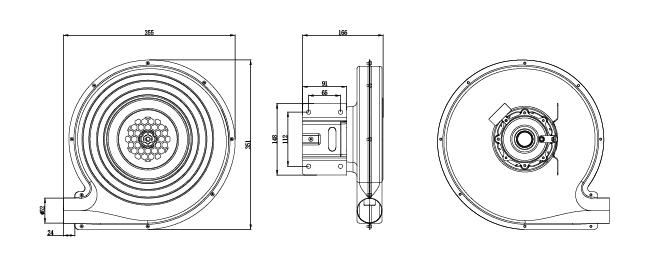

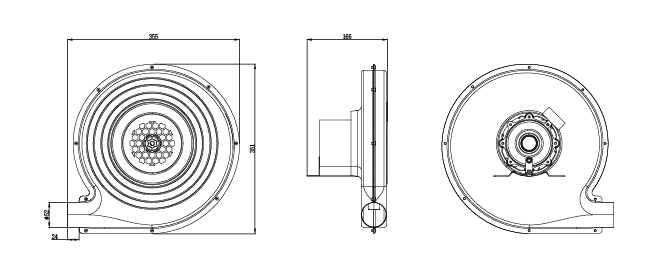

兩種安裝尺寸
1.輸入功率/power：250W? ? ? ? ? ?2.電壓/voltage：220V
3.轉速/speed：2800r/min2? ? ? ?4.風壓/pressure：1480Pa
5.風量/air flow：500m3/h? ? ? ? ? 6.噪音/noise：75dB(A)
7.電源線長度/wire length：0.4m
產品特性描述：
? ? ? 本產品殼體采用優質電解板拉伸而成，
電機全封閉組合，代替?zhèn)鹘y(tǒng)的鋁殼結構
另配獨立安裝板進行圓周多方位臥式安
裝，同時充分利用蝸殼的環凸設計進行
電機固定以及側隙通風。使用本產品性
價比更高，結構緊湊，自冷良好，安裝
方便。適用于各類節能灶、工程灶。
Product characteristics? ??
The shell of this product is stretched from high-quality electrolytic plates, and the motor is fully enclosed, replacing the traditional aluminum shell structure.It is equipped with an independent mounting plate for circumferential multi-directional horizontal installation, and at the same time makes full use of the ring convex design of the volute for Motor fixing and side clearance ventilation. Using this product is more cost-effective, compact structure, good self-cooling, easy to install. It is applicable to all kinds of energy-saving stoves and engineering stoves.
? ? ? 本產品殼體采用優質電解板拉伸而成，電機全封閉組合，代替?zhèn)鹘y(tǒng)的鋁殼結構，另配獨立安裝板進行圓周多方位臥式安裝，同時充分利用蝸殼的環凸設計進行電機固定以及側隙通風。使用本產品性價比更高，結構緊湊，自冷良好，安裝方便。適用于各類節能灶、工程灶。
? ? ?The shell of this product is stretched from high-quality electrolytic plates, and the motor is fully enclosed, replacing the traditional aluminum shell structure.It is equipped with an independent mounting plate for circumferential multi-directional horizontal installation, and at the same time makes full use of the ring convex design of the volute for Motor fixing and side clearance ventilation. Using this product is more cost-effective, compact structure, good self-cooling, easy to install. It is applicable to all kinds of energy-saving stoves and engineering stoves.
